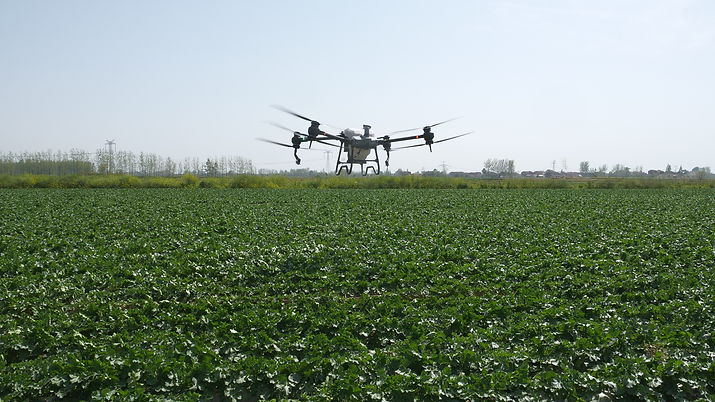

DJI AGRAS T40
AERIAL SPRAYING AT NEW HEIGHTS
That’s the best way to describe the newest addition in the DJI Agras drone line-up. From the lightweight frame to increased tank size and binocular vision, the Agras T40 hits the market with the updated features users have asked for.
​
As the biggest and most technologically advanced sprayer and spreader drone in the U.S., this “two-drones-in-one” model offers an unsurpassed built-in mapping ability, affording users image capture, image processing, and stitching via the T40 drone and remote.
​
The features of the T40 spraying and spreading technology decrease crop inputs while increasing yield, user safety, and overall spraying and spreading efficiency.
PRODUCT SPECIFICATIONS
SPRAY SYSTEM
-
10.5-gallon liquid tank designed to empty in under 4 minutes
-
Estimated 30-foot swath with pattern consistency across the entire swath
-
Smaller, more reliable rotary pumps located on the tank utilize an unpressurized
spray system -
Two rotary style nozzles spray through centrifugal force rather than pressure, making adjusting droplet size as easy as clicking a button
-
Live level meter, in addition to on-board scales, provide readings of the remaining volume of liquid in tank signaling time remaining in field
SPREADER SYSTEM
-
18.5-gallon spreader tank designed to hold ~115 lbs. of granular material
-
Redesigned spreader cover and frame to create minimal pattern disturbance
-
Equipped with a dump valve and the ability to fill using a seed tender spout
EFFICIENCY & OPERATIONS
-
Whole field coverage — Up to 40 acres per hour at 2 GPA
-
Combines mapping, spraying and spreading functions using the remote controller and the D-RTK 2 mobile station
-
12 mega-pixel camera and adjustable gimbal enable easy capture of desired views
-
Fully enhanced remote controller with a 7” display screen for smoother, faster mapping
-
Ability to operate continuously with 3 batteries, 1 charger and a generator on site
OPERATOR SAFETY & EASE OF USE
-
Complete autonomous mission planning is fast, easy and customizable
Equipped with active phased array radar and a binocular vision sensor system to provide 360-degree horizontal omnidirectional obstacle sensing
Foldable design reduces the aircraft size by 70% for greater portability
Rated IPX6 throughout the entire aircraft, meaning it is water and dust proof
